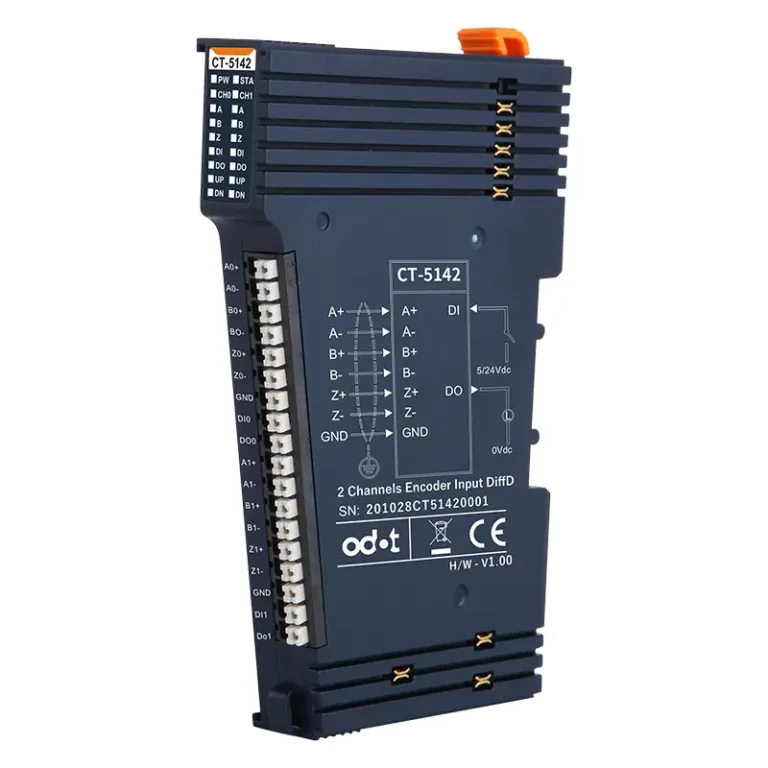

CT-5142 2-Channel Encoder /Differential Input

CT-5142 2-CHANNEL ENCODER /DIFFERENTIAL INPUT

Product Feature:

  • the module supports two channels of encoder input.
  • each encoder channel supports A/B incremental encoder or pulse-directional encoder input.
  • each encoder channel supports orthogonal A/B differential signal input, voltage output range 0-5V.
  • the incremental encoder mode supports x1/ x2 / x4 frequency multiplication mode.
  • the pulse – direction mode supports nondirectional signal, pulse input only.
  • each encoder channel supports 1 digital input signal with an input voltage of 5Vdc or 24Vdc.
  • each encoder channel supports 1 digital output signal with an output voltage of 5Vdc.
  • the module internal bus and field input adopt magnetic isolation.
  • the module carries 16 LED indicators.
  • the maximum input frequency of the encoder supported by the module is 10MHz.
  • the module supports measurement function, it could detect the load speed or input signal frequency.

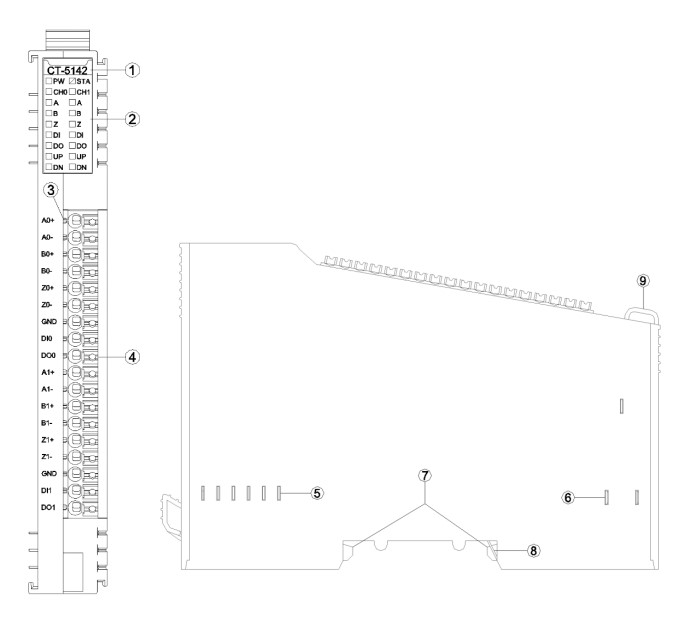

Product Details

Technical Parameters

GEneral parameters
Power
Max.60mA@5.0Vdc
Isolation
I/O to internal bus: magnetic isolation (3KVrms)
Field Power
Nominal:24Vdc, Range:20-28Vdc
Wiring
I/O Wiring: Max.1.5mm²(AWG 16)
Mounting Type
35mmDIN-Rail
Size
115*14*75mm
Weight
65g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% RH(No Condensation)
Protection Class
IP20
Input parameters
Channel Number
2-channel encoder
LED Indicator
16 channel input LED indicator
Encoder signal type
Differential input, voltage output range of 0-5V
Encoder filtering time
Default 0.5us
Encoder count frequency
<10MHz
Encoder frequency multiplication mode
x1/x2/x4
Encoder measurement function
Load speed or input signal frequency measurement
DI turn-on voltage
Min.5Vdc to Max.28Vdc
DI turn-off voltage
Max.2.7Vdc
DI turn-on current
Max.5mA/channel@28V
DI input impedance
>10.0kΩ
DI input delay Off to ON
Max.3ms
DI input delay ON to OFF
Max.2ms
DO output voltage
5V, range ±10%
DO output current
Max.500mA
DO output sink current
Max.5uA
