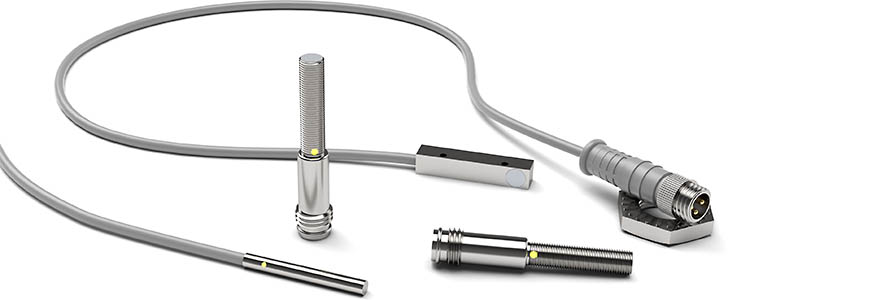

Miniature

Engineers are often faced with a particular need for sensors that fit into tight spaces. All inductive sensors of the Miniature Series are fully integrated; no external amplifier is required. All devices are equipped with reverse polarity protection as well as a short-circuit proof switching output. Also an optical switching indicator is generally built-in.

Features

  • Robust metal body

  • High sensing distances

  • Polarity reversal and short-circuit protected

  • Oil resistant PUR cables

  • LED status indication

Benefits

  • Minimal space requirements

  • Electrically fully protected

Common Specifications

Operating Voltage

10 … 30 VDC

Reverse Polarity Protection

built-in

Output Load Capability

200 mA

Short Circuit Protection

built-in, self-resetting

Voltage Drop

1.5 V @ 200 mA

Operating Temperature

–20 … 70°C | -4 … 158 °F

Protection Class

IP67

Switching Indicator

yes, yellow

Sensing Face Material

PBT
