AIOBOX

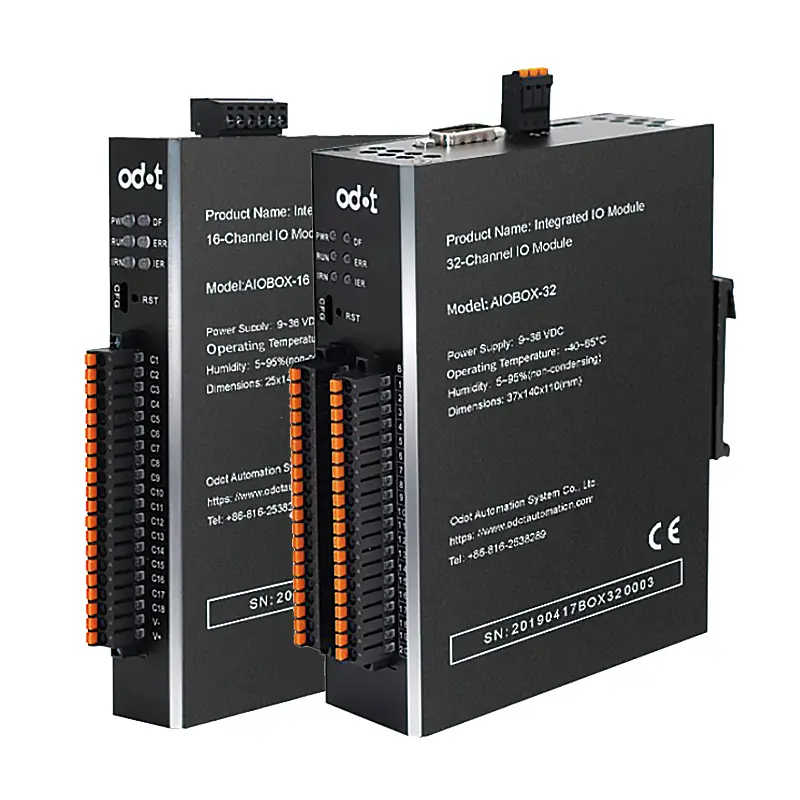

AIOBOX-16/32: MODBUS/ProfiNet/ProfibusDP/EtherCAT/CANopen

AI0B0X Series Integrated IO AIOBOX-16/32

  • Al0BOX-16 supports single-deck mother board, 3 slots, slot 0 for communication adaptor, slot 1/2 for I/O module,
  • Al0BOX-32 supports double-deck mother board, 5 slots, slot 0 for communication adaptor, slot 1/2/3/4 for  I/O module
  • Al0BOX-16 supports single-deck mother board, 3 slots, slot 0 for communication adaptor, slot 1/2 for I/O module;

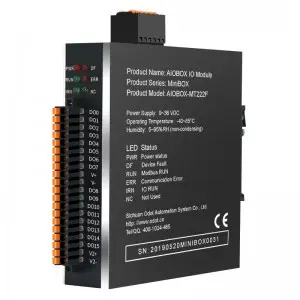

AIOBOX-MT222F: Modbus TCP/RTU/ASCII 16 DO

AIOBOX-MT222F

AIOBOX-MT222F supports 16-channel digital output, High Level On, output voltage 24V DC;

The module is with 16 pcs of DI&DO LED indicator;

The module input channel can be wired with the 2-Wire or 3-Wire digital sensor;

Each input channel of the module supports a 32-bit counter with the counting frequency <200Hz

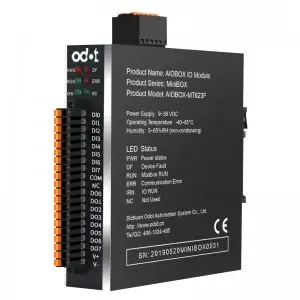

AIOBOX-MT623F: Modbus TCP/RTU/ASCII 8DI+8DO

MiniBOXIO

  • AIOBOX-MT124F supports 16-channel DI, supports source and sink two-way Input, input voltage 24v/0v.
  • AIOBOX-MT222F supports 16-channel DO, high-level voltage is valid, output voltage 24v.
  • AIOBOX-MT623F supports 8-channel DI, supports source and sink two-way input, input voltage 24v/0v.

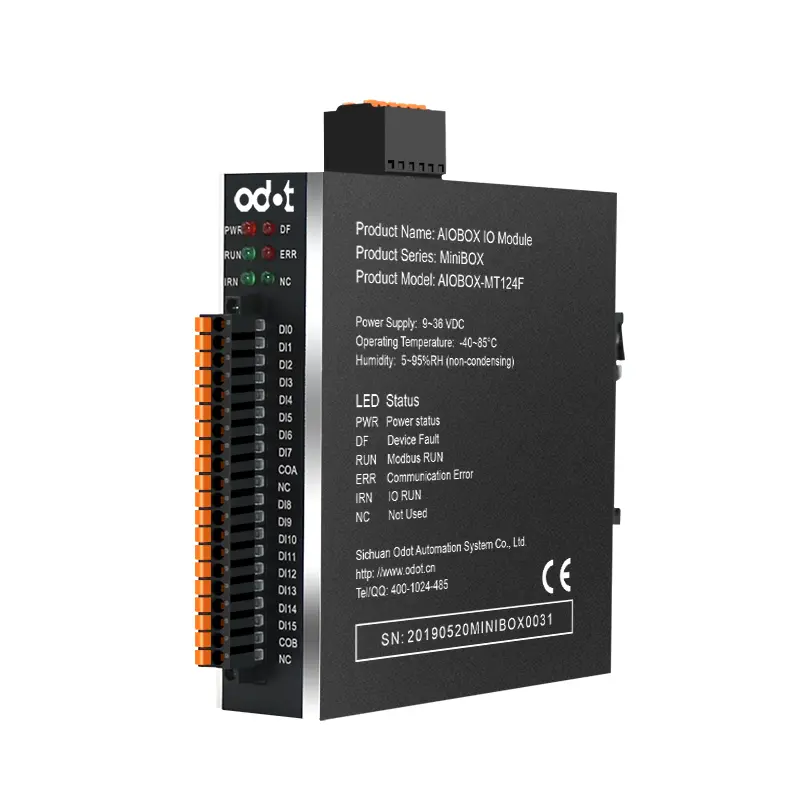

AIO BOX-MT124F: Integrated IO Module MODBUS 16DI

MiniBOXIO

  • AIOBOX-MT124F supports 16-channel DI, supports source and sink two-way Input, input voltage 24v/0v.
  • AIOBOX-MT222F supports 16-channel DO, high-level voltage is valid, output voltage 24v.
  • AIOBOX-MT623F supports 8-channel DI, supports source and sink two-way input, input voltage 24v/0v.
