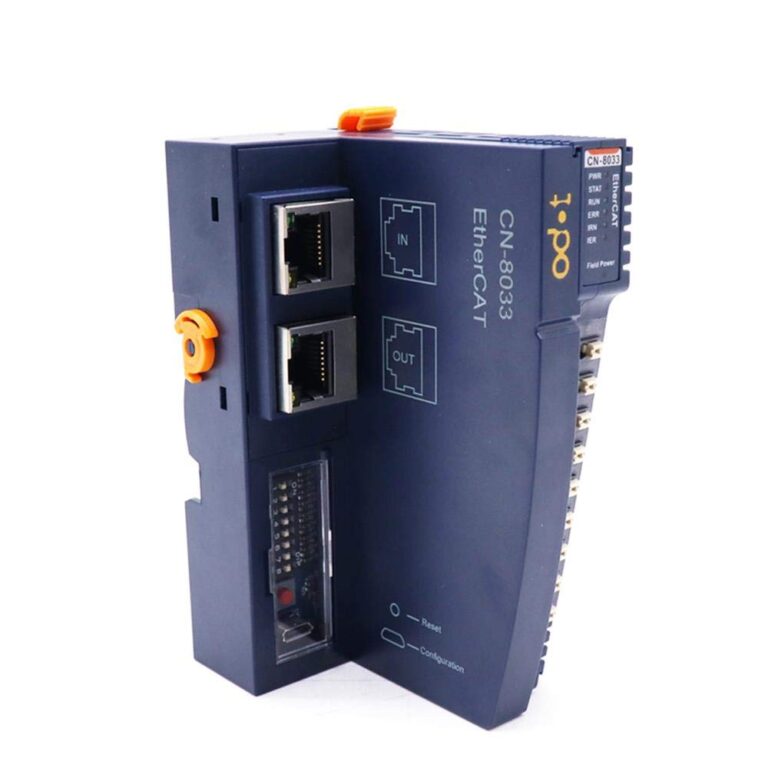

ODOT CN-8033: ETHERCAT NETWORK ADAPTER

ODOT CN-8033: ETHERCAT NETWORK ADAPTER

Product Feature:

The CN-8033 EtherCAT I/O module supports standard EtherCAT protocol access. The adapter supports a Max. input of 1024 bytes and a Max. output of 1024 bytes. It supports 32 pcs of extended IO modules.

Product Details

Technical Parameters

Hardware Specification
System Power
Nominal 24Vdc, Range-9-36Vdc
Power Consumption
30mA@24Vdc
Internal BUS Supply Current
Max: 2.5A@5VDC
Isolation
System Power to Field Power Isolation
Field Power
Current Max. DC 8A
IO Modules Supported
32 pcs
Wiring
Max.1.5mm² (AWG 16)
Mounting Type
35mm DIN-Rail
Size
115*51.5*75mm
Weight
130 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% (No Condensation)
Protection Class
IP20
Profibus-DP Parameter
Protocol
PROFIBUS DPV0
Interface Type
DB9 female head
Station Type
PROFIBUS Slave
Station Address
Dial code switch configuration
Topology
Bus topology
Configuration Max. Length
232 bytes
IO data Max. Length: Input
Max. 244 bytes, Output: Max. 244 bytes, Sum of input and out put: Max. 288 bytes
