ODOT CN-8032-L:PROFINET NETWORK ADAPTER

Product Feature:

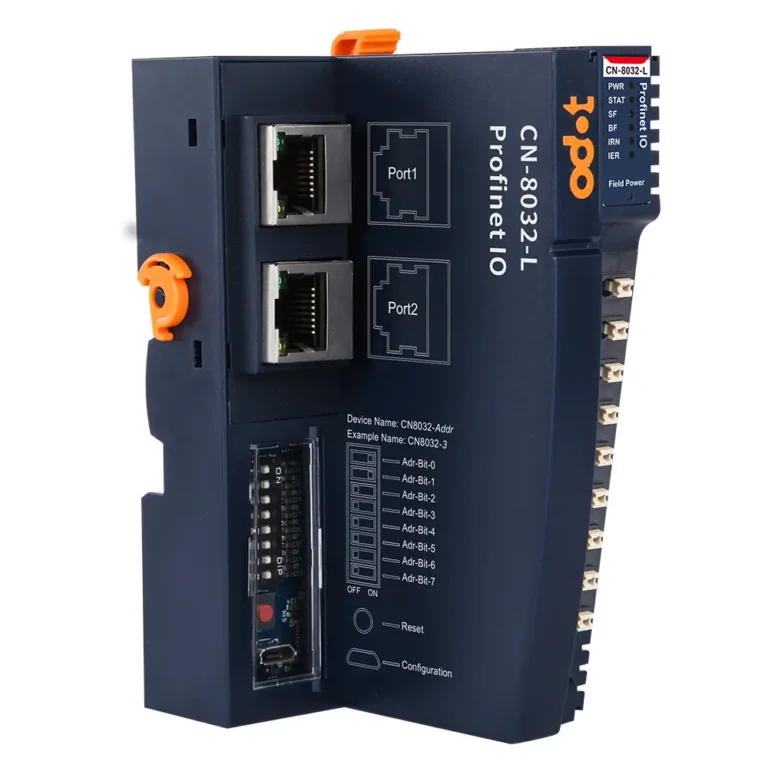

ODOT CN-8032-L Profinet Network Adapter

The CN-8032-L Profinet network adapter supports standard Profinet IO Device Communication. The adapter supports no MRP redundancy, and no ring network redundancy. And it supports RT real-time communication mode, with its RT real-time communication minimum period of 1ms.The adapter supports a maximum input of 1440 bytes, a maximum output of 1440 bytes, and the number of the extended IO modules it supports is 32.

Supports no MRP redudancy, no IRT function



Product Details

Technical Parameters

Hardware Specification
System Power
Nominal: 24Vdc. Range: 9-36Vdc. Reverse Protection: YES.
Power Consumption
110mA@24Vdc
Current Output
Max:2A@5Vdc
Isolation
System Power to Field Power Isolation
Field Power
Nominal-24Vdc. Range-22-28Vdc.
Reverse Protection
YES
Field Power Contact
Max: 8A
Expansion Module
32 Slots
Wiring
Max.1.5mm² (AWG 16)
Mounting Type
35mm DIN-Rail
Size
115*51.5*75mm
Weight
130 g
Environment Specification
Operational Temperature
-40~85℃
Operational Humidity
5%-95% (No Condensation)
Protection Class
IP20
Profinet Parameter
Protocol
Profinet IO Device
I/O Data Size
Input Max.1440 Bytes, Output Max.1440 Bytes
RT
YES,Min.1ms
IRT
YES,Min.250us
MRP
YES
MRPD
NO
Network Interface
RJ45x2
Speed
10/100Mbps, MDI/MIDX, Full-Duplex
Distance
100m
Profinet Device Name
DIP switch setting or Profinet monitor modifying
